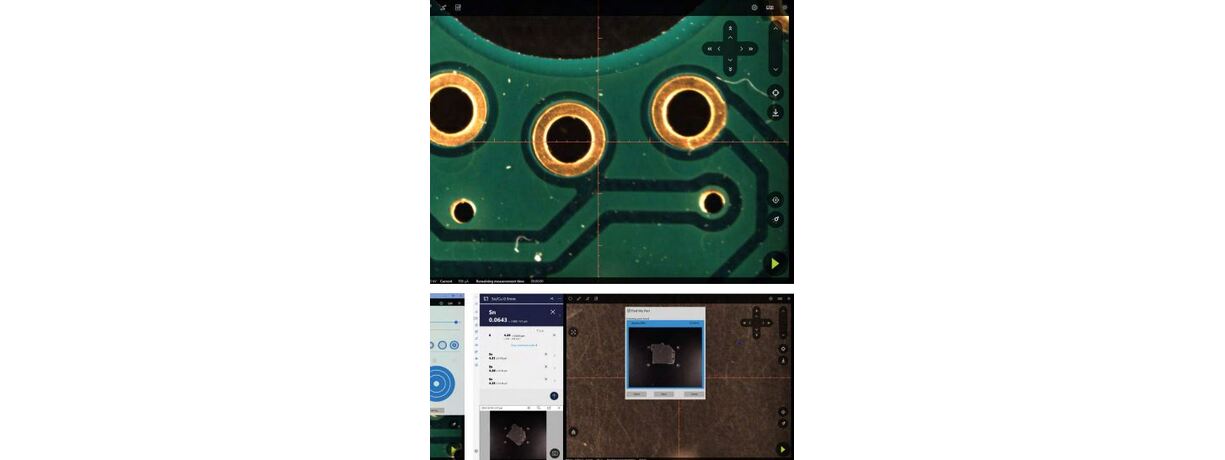

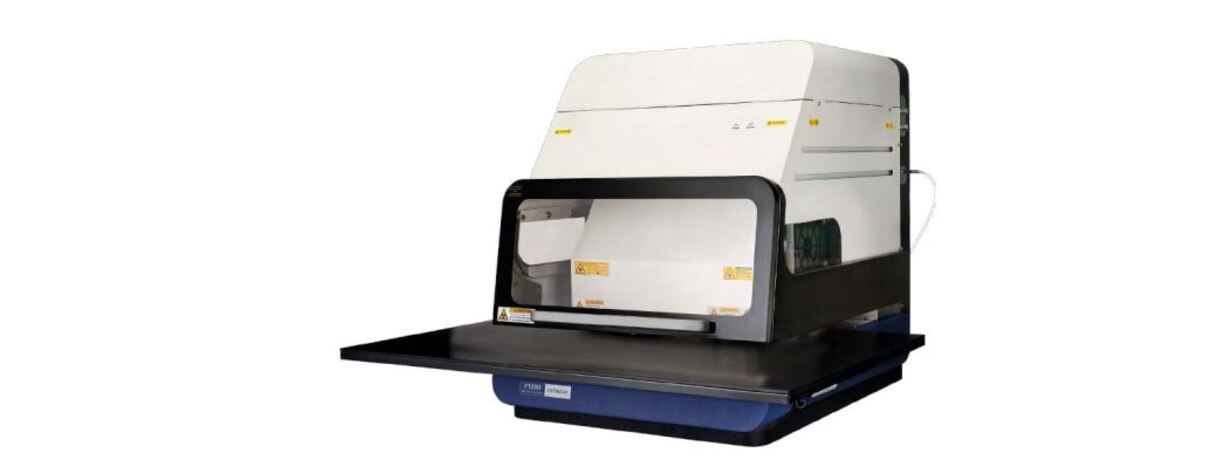

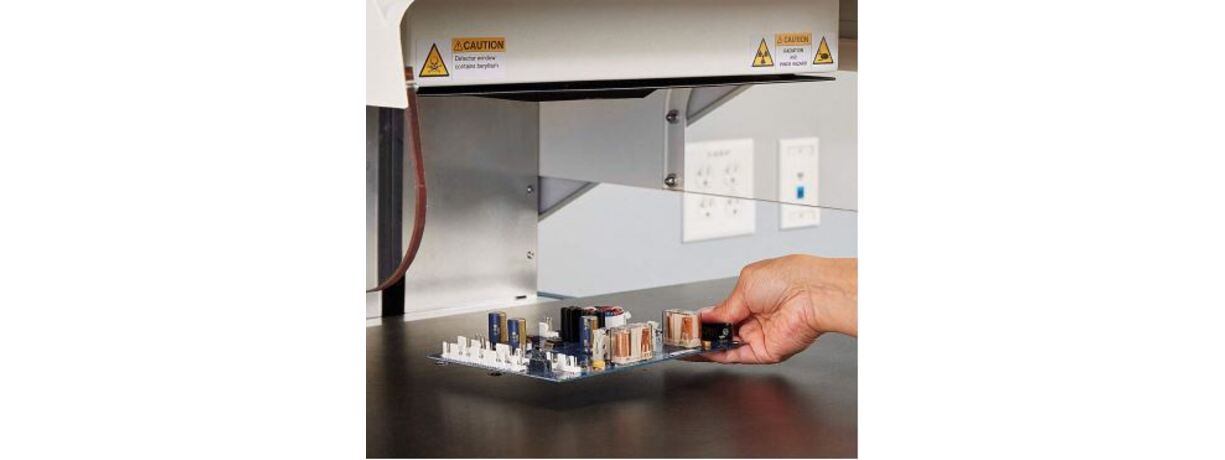

The FT230 includes newly developed smart part recognition for fast and foolproof analysis setup. This automates the most frustrating and potentially error-prone part of the analysis setup - selecting the right recipe for each analysis location.
The FT230 is the first product to run Hitachi’s new FT Connect software, building on over four decades of experience and user feedback on established software including SmartLink and X-ray Station.
| Analysis Details | |
|---|---|
| X-ray Tube | Tungsten (W) target microfocus X-ray tube, top-down orientation Maximum 50 kV, 1000 µA, 50 W |
| Detector | High resolution, large area 50 mm² SDD |
| Primary Filters | 5 primary filters (2x Al, Ti, Mo, Ni) + 1 open position |
| Collimators | 4 collimators available in rectangular and round sizes from 0.01 × 0.25 mm to 1 mm (0.5 × 10 mil to 40 mil) |
| Element Range | Al (13) – U (92) |
| Number of Layers | Maximum 5 (4 layers plus substrate) |
| Selectable Elements | Free selection |
| Atmospheric Compensation | Automatic temperature and pressure compensation |
| Atmosphere | Air |
| Norms | Measurement of coatings by EDXRF – ASTM B568, DIN ISO 3497 |
| Sample Positioning Details | |
| Largest Sample Size | 500 × 400 × 150 mm (19.7 × 15.7 × 5.9") |
| Stage Travel | 250 × 200 mm (9.8 × 7.8") |
| Stage Sizes |
• 900 × 600 mm (35.4 × 23.6") – motorized stage, slotted chamber • 270 × 210 mm (10.6 × 8.2") – motorized stage, closed chamber • 540 × 540 mm (21.2 × 21.2") – fixed stage |
| Stage Speed (motorized) | 80 mm/s (3.1"/s) |
| Stage Precision (motorized) | ≤ 5 µm (0.002") |
| Maximum Sample Weight | 10 kg (22 lb) – fixed stage 5 kg (11 lb) – motorized stage |
| Z-axis Travel | 205 mm (8") |
| Working Distance | 5 mm (0.2") nominal, focus laser 5–67 mm (0.2–2.6") auto focus/auto approach (optional) |
| Stage & Z-axis Control | Software controls and 3-axis joystick with start button (optional) |
| Focusing | Laser focus (Class 1 product), distance-independent; auto focus / auto approach (optional) |
| Field of View (Camera) | 7.1 × 5.3 mm (0.28 × 0.2") |
| Field of View (Wide-view Camera) | 250 × 200 mm (9.8 × 7.8") (optional) |
| Positioning Assistance | Positioning laser, pre-positioning laser (motorized stage configuration) |
