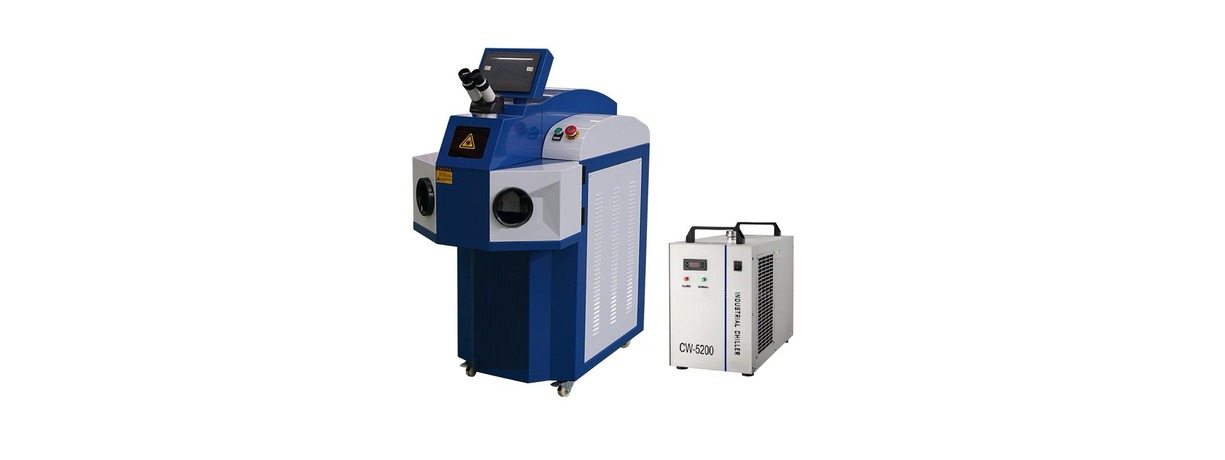

A high-precision laser welding machine for jewellery, ideal for repairing, resizing, and joining gold, silver, platinum, and other precious metals. Its advanced ND:YAG laser ensures clean welds with minimal heat impact, while the CW-5200 industrial chiller provides stable cooling for continuous and reliable operation.
The FT230 is the first product to run Hitachi’s new FT Connect software, building on over four decades of experience and user feedback on established software including SmartLink and X-ray Station.
| Model No. | SLW-200-Neo |
|---|---|
| Output Power | 200 W – High |
| Single-pulse Energy | 0–140 J |
| Machine Design Type | Desktop / Vertical |
| Laser Source | ND:YAG |
| Laser Wavelength | 1064 nm |
| Pump Lamp | Pulsed Xenon Lamp |
| Pulse Width | 0.1–15 ms adjustable |
| Pulse Repetition Frequency | 1–20 Hz adjustable |
| Observing System | Microscope |
| Cooling System | Industrial chiller (CW-5200) |
| Power Supply | Single Phase AC 220V±10%, 50/60Hz, 4 KW |
| Running Environment | Temperature 5°C–28°C; Humidity 5%–70% |
| Machine Dimensions | L 42" × H 26" × W 24" |
| Welding Spot Diameter | 0.2–1.5 mm adjustable |
