LASER WELDING MACHINE

Compact • Powerful • Precision Welding for Fine Jewelry

Product Overview

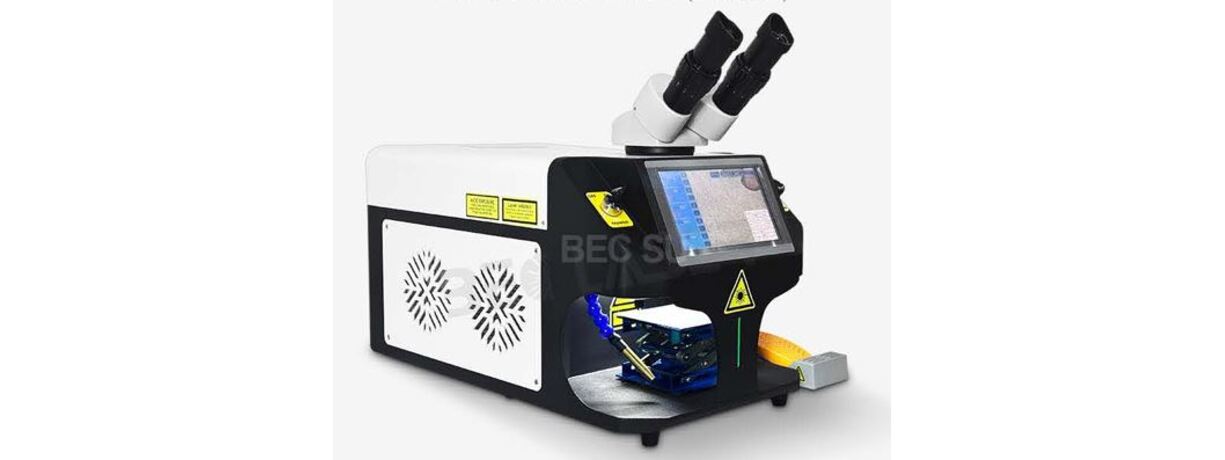

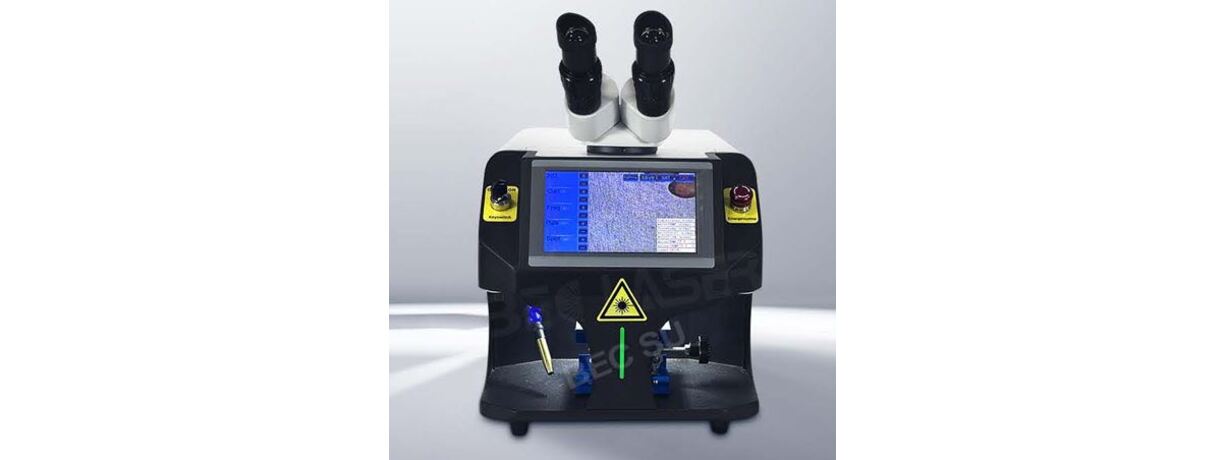

Jewelry Welding Machine Model JW100M is a high-precision solution built specifically for professional jewelry applications. It supports Overlap Welding, Repair Welding, and Splice Welding, making it perfect for joining, restoring, or modifying fine jewelry pieces with unmatched accuracy. The JW100M delivers a clean weld with minimal heat effect, preserving the beauty and integrity of delicate materials like gold, silver, and platinum. Compact yet powerful, this machine ensures stable performance, easy operation, and is ideal for both production and repair workshops seeking reliability and finesse.

Key Features

Precision Pulse Laser Technology Utilizes high-frequency Nd:YAG pulse laser output with pulse width and energy adjustment for micro-welding of fine jewellery components with ±0.1 mm accuracy.
Compact, Integrated Desktop Configuration All-in-one closed structure with internal cooling system, optimized for benchtop use in constrained workshop environments without sacrificing performance.
High-Resolution Microscope System Integrated 10X microscope with crosshair alignment and coaxial LED illumination for accurate visual targeting and real-time observation during welding.
Touchscreen HMI Control Panel Digital interface allowing precise adjustment of laser parameters including energy (J), pulse width (ms), frequency (Hz), and laser spot diameter (mm).
Low Thermal Impact Zone Laser beam delivers concentrated energy with minimal heat diffusion, preventing warping or damage to surrounding areas of sensitive metals like 18K gold, 925 silver, or platinum..

PRODUCT PARAMETERS

MODEL	JW100M
LASER POWER	100W
LASWER WAVELENGTH	1064NM
TYPE OF LASER	ND : YAG
MAX SINGLE PULSE ENERGY	100J
FREQUENCY RANGE	1 - 15Hz ADJUSTABLE LEVEL
CONTROL SYSTEM	PC - CNC

Applications

Precision welding of fine jewelry (rings, chains, pendants, earrings, etc.)
Electronic component repair (micro connectors, pins)/li>
Dental applications (orthodontic and prosthetic welding)
Watch repair (bracelet links, clasps, housings)
Eyewear frame welding

CCD MONITOR

LCD TOUCH SCREEN CONTROLLER WITH BUILT-IN SOFTWARE ,THE ADJUSTMENT OF PARAMETER IS EASY YOU CAN KEEP DIFFERENT PARAMENT FOR DIFFERENT MATERIALS AND CAN SEARCH DIRECTLY WHEN NEEDED.

MICROSCOPES

MICROSCOPE CAN ENLARGE THE WELDING OBJECTS AND ENSURE EXCELLENT VISION OF TINY PARTS. THE WELDING CLARITY CAN BE ADJUSTED.

GAS BLOW PIPES

BLOW IN PROTEECTING GAS SUCH AS N2, AR, HE . CAN PROTECT THE LENS FROM SPUTTERING OF METAL DROPLETS AND PROTECT THE WELD FROM OXIDATION DURING WELDING

LIFTING TABLES

THE LIFTING TABLE CAN BE DOUBLE OPENED WITH 100*100mm LIFTING PLATFORM TO ADJUST THE LASER FOR ACCURATE POSITIONING OF THE FOCAL LENGHT
