Compact Design • Fast & Accurate Analysis • Multi-Metal Compatibility • User-Friendly Touch Interface

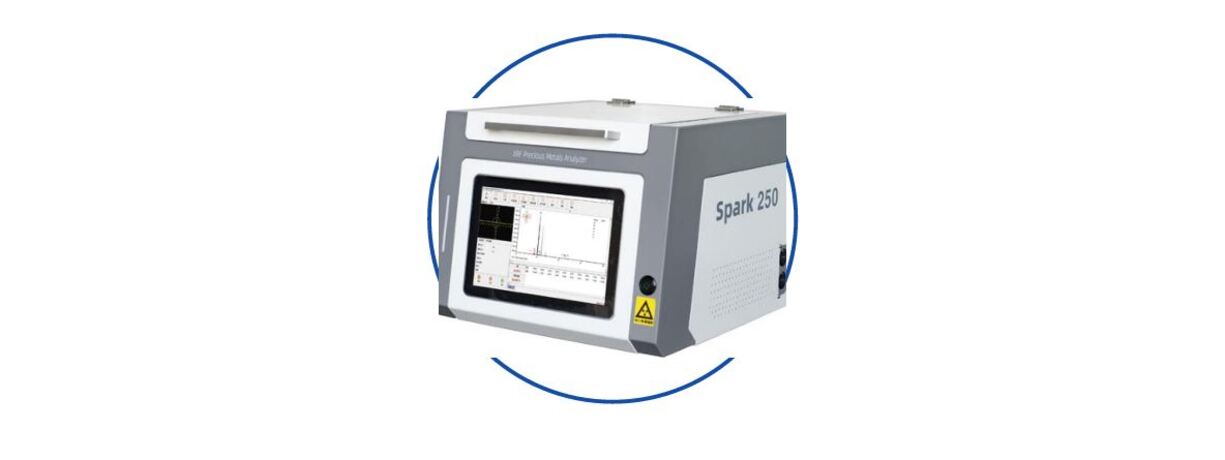

Benchtop Spark 250 is a compact, high-precision optical emission spectrometer designed for accurate metal composition analysis. Ideal for quality control in foundries, fabrication units, and scrap sorting.
| MODEL | Benchtop XRF Analyzer |
|---|---|
| Net Weight | 25 kg |
| Outside Dimensions | 400mm × 380mm × 310mm |
| Test Chamber Dimensions | 290mm × 280mm × 75mm |
| X-ray Tube | 50kV / 1mA |
| Detector | High-performance Chinese Si-pin, 125eV |
| Display | 10.1-inch color touch-screen |
| Collimator | 1mm |
| Peripheral Equipment Ports | USB × 2 (3 optional), RJ45 × 1 |
| Accuracy | ± 0.03% |
| Multichannel Analyzer | Amptek (USA) |
| Elements Display | Au, Ag, Pt, Pd, Rh, Cu, Ni, Zn, Co, Mn, Ti, Pb, W, Sn, Cr, Cd, In, Fe, As, Ru, Re, Os, Ir |
| Modes | Precious Metal Analysis, Plating Thickness Analysis (optional) |
| Operating System | Linux |
| Optical System | ULS vertical optical system |
| Languages | Default English, Chinese; customizable in multiple languages |
| Testing Time | 60–120 seconds |
| Microcomputer System | Built-in industrial computer; 2.5GHz CPU, 8GB RAM |
| Scalability | Connects to PC, monitor, printer, jewelry scale, remote screen projection display |
| Radiation Protection | Password protection, hardware linkage safety, sound & light alarms |
